MIDI Instruments

Your pi-Stomp is also a synthesizer. Plug a USB-MIDI keyboard into a spare USB port (or point a sequencer at it), connect the keyboard to a plugin's MIDI input in MOD-UI, and the Instrument-class plugins generate audio from nothing — no guitar required, and the rest of your pedalboard sits right there to color the result. No other pedalboard runs a full synth voice through your own effects chain on the same box. Forty-six instrument plugins ship on the device; these are the ones worth loading first:

Our pick: Dexed

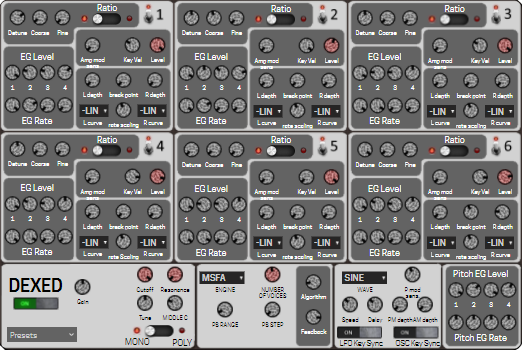

Dexed is glassy, bell-like, percussive FM — the electric-piano tines, brass stabs, and crystalline pads that defined a decade of records. It is a full six-operator FM engine with all 32 algorithms (fm_core.cc:29-61), patch-compatible with the Yamaha DX7: it reads original SysEx cartridges, so forty years of patch libraries load directly. 256 presets ship on the device, and three engine modes change the character — MSFA (clean), Mark I (models the original hardware's quirks), and OPL (crunchier, sound-chip-grade resolution).

The 155 operator parameters are all exposed if you want to program FM from scratch, but start from the presets — that's how the original was played too. One caveat: the plugin defaults to 16 voices and allows 32, and six operators per voice adds up (we estimate ~60 multiply-adds per voice per sample from the operator structure — estimated, not measured). Drop Num of Voices to 8 if you run it alongside a guitar chain.

Place it at the head of its own chain — instrument plugins take MIDI in, not audio, so they start a parallel path that merges with your guitar signal wherever you like. Running FM keys into your own overdrive and delay is the point of doing this on a pedalboard.

New to loading plugins? See Plugins & Effects for how to browse and add them in MOD-UI.

Also great: setBfree

setBfree is the tonewheel organ: breathy, clicky, and alive in a way sampled organs aren't. Robin Gareus's model generates every note additively from 91 modeled tonewheels (tonegen.h:75), with drawbars, percussion, and the vibrato/chorus scanner all behaving like the electromechanical original — moving a drawbar reshapes notes already sounding. Pair it with setBfree Whirl Speaker, the companion rotary-speaker plugin, for the full growl-to-shimmer swell.

What you give up: knob access. The plugin exposes no LV2 control ports — drawbars and switches live in its plugin GUI in MOD-UI or arrive over MIDI CC, so you can't assign them to pi-Stomp's encoders directly. Set your registration in the GUI and play; use the Whirl Speaker's slow/fast switch (which does have ports) as your performance control.

Also great: FluidGM

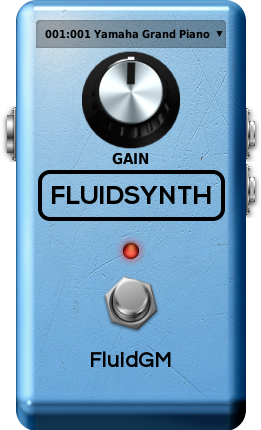

FluidGM is the practical pick: one plugin, 189 General MIDI programs — pianos, strings, brass, drums, everything. It is FluidSynth wrapped as LV2 (falkTX's FluidPlug) with Frank Wen's Fluid GM soundfont baked in, and exactly two controls: Level (0–2) and Program. When you need "a string pad under the looper" or "any piano at all," this is thirty seconds of setup.

What you give up: shaping and RAM. There is no filter or envelope — whatever the soundfont author baked in is what you get — and the 148 MB soundfont loads resident, which is a real cost on a Pi. If that's too much, AirFont320 is the same engine with a compact 9.7 MB GM bank and 325 presets.

Also considered

Nekobi nails one sound: squelchy acid bass. It models the classic silver bassline box — one pulse/saw oscillator into a four-pole filter (nekobee_voice_render.c:159-264) with the Env Mod, Decay, and Accent controls that make the filter bite and bark. Monophonic by design and nearly free CPU-wise. If you want acid lines under a live loop, load it; if you want chords, look elsewhere.

MDA ePiano is the tine electric piano — barky when you dig in, glassy when you don't. Despite the name suggesting FM, it plays back sampled tines across 31 velocity-split keygroups, with Hardness, Treble Boost, and Overdrive to move it from mellow to mean. Light on CPU at 32 voices. A strong second chain behind Dexed's FM keys when you want the real sampled thing.

Crypt does exactly one thing: enormous, cold, detuned pads. Up to 64 unison oscillators per voice (SuperSawVoice.hpp:42) with built-in phaser, delay, and reverb. Gorgeous for ambient beds, heavy at full Unison — treat it as a texture generator, not a workhorse.
